When specifying finishes for architectural aluminum profiles—such as curtain walls, doors, windows, and sunrooms—buyers need a coating that meets strict performance and certification standards. Hsinda (Chengdu Hsinda Polymer Materials Co., Ltd., established 2015, a manufacturer of powder coatings) supplies Aluminum Powder Coating that complies with international benchmarks including AAMA, Qualicoat, and ISO standards, while offering customizable RAL colors.

What Makes an Architectural Powder Coating Reliable?

Architectural coatings must resist UV radiation, humidity, and temperature extremes for decades. Without verified certification and documented performance, projects risk premature chalking, corrosion, or delamination. Buyers in the research and evaluation stage need confirmation that a powder coating supplier can deliver consistent quality backed by third-party testing.

Industry Background: The Growing Demand for Certified Finishes

According to Grand View Research, the global powder coatings market was valued at USD 11.5 billion in 2025. Architectural and decorative applications represent a major end-use segment, driven by demand for UV-resistant facades and window systems (Mordor Intelligence). International certification schemes including Qualicoat, GSB International, and AAMA standards (2603, 2604, 2605) govern powder coatings for architectural use. Thermoset powder coatings, including epoxy and polyester resins, accounted for a 76.6% market share in 2026 due to durability and corrosion resistance (Coherent Market Insights).

Hsinda’s Solution: Certified Powder Coating for Aluminum Profiles

Hsinda’s Aluminum Powder Coating (model: Customize RAL Color Powder Coating) is a Polyester Powder Coating designed specifically for architectural aluminum profiles. It qualifies as a weather-resistant powder coating and meets requirements for AAMA, Qualicoat, and outdoor applications. The product is manufactured in Hsinda’s 10,000 m² factory with 8 advanced production lines and a yearly output exceeding 5,000 tons. The factory holds ISO 9001 and ISO 14001 certifications, and its powder coatings have passed RoHS, REACH, SGS, and AAMA tests.

Key Performance Parameters

• Gloss: 5%–95% per ISO 2813:2014
• Impact: 2.5 Nm per ISO 6272-1:2017
• Bending: ≤5 mm per ISO 1519:2002
• Cupping: ≥5 mm per ISO 1520:2006
• Adhesion: Grade 0 per ISO 2409:2020
• Hardness: ≥H per ISO 15184:2020
• Salt spray resistance: 1000 hours, coating unchanged, corrosion ≤2 mm per ISO 7253:1996
• Humidity and heat resistance: 1000 hours, slight gloss loss ≤ level 1 per GB/T1740-2007
• Weather resistance: 340 lamp tube 1000 hours, no powdering, light retention >50% per ISO 11341:2004
• Natural aging test: 1 year in Florida, gloss retention >50%

Material composition: super weather resistance polyester resin, TGIC curing agent, pigments, and additives. Average particle size 32–42 μm, specific gravity 1.2–1.7 g/cm³, coverage 8–10 m²/kg at 30–90 μm film thickness. Curing at 180–200°C for 10–15 minutes.

Certifications That Build Confidence

Hsinda’s powder coatings have obtained multiple third-party certifications, documented below:

How to Specify Hsinda Aluminum Powder Coating: A Step-by-Step Guide

1. Select the resin system: For outdoor aluminum profiles, choose polyester powder coating with TGIC or HAA curing, depending on weather resistance requirements.
2. Define color and gloss: Provide RAL or Pantone code. Hsinda can match custom colors. Gloss ranges from matt (5–30%) to high-gloss (80–95%).
3. Confirm the surface texture: Smooth, sand, wrinkle, hammer tone, metallic, or other effects available.
4. Specify performance requirements: For architectural applications, request AAMA 2604 or Qualicoat Class 1/2 compliance. Hsinda’s standard 1000-hour salt spray and weather resistance exceed most project needs.
5. Request certification documentation: Hsinda provides test reports from SGS, RoHS, REACH, FDA, and Carbon Footprint upon request.
6. Order a sample: Minimum custom order is 300 kg; standard lead time 15–20 days.

Use Cases in Architectural & Industrial Applications

Hsinda’s Aluminum Powder Coating is used in:

• Aluminum profiles for doors, windows, glass curtain walls, sunrooms, architectural partitions.
• Transportation and municipal engineering: highway guardrails, bus stops, shelters, signs, vehicle parts.
• Interior and home furnishings: interior partitions, railings, ceilings, cabinets, lighting fixtures.
• General industry: equipment enclosures, electrical cabinets, radiators, shelves.

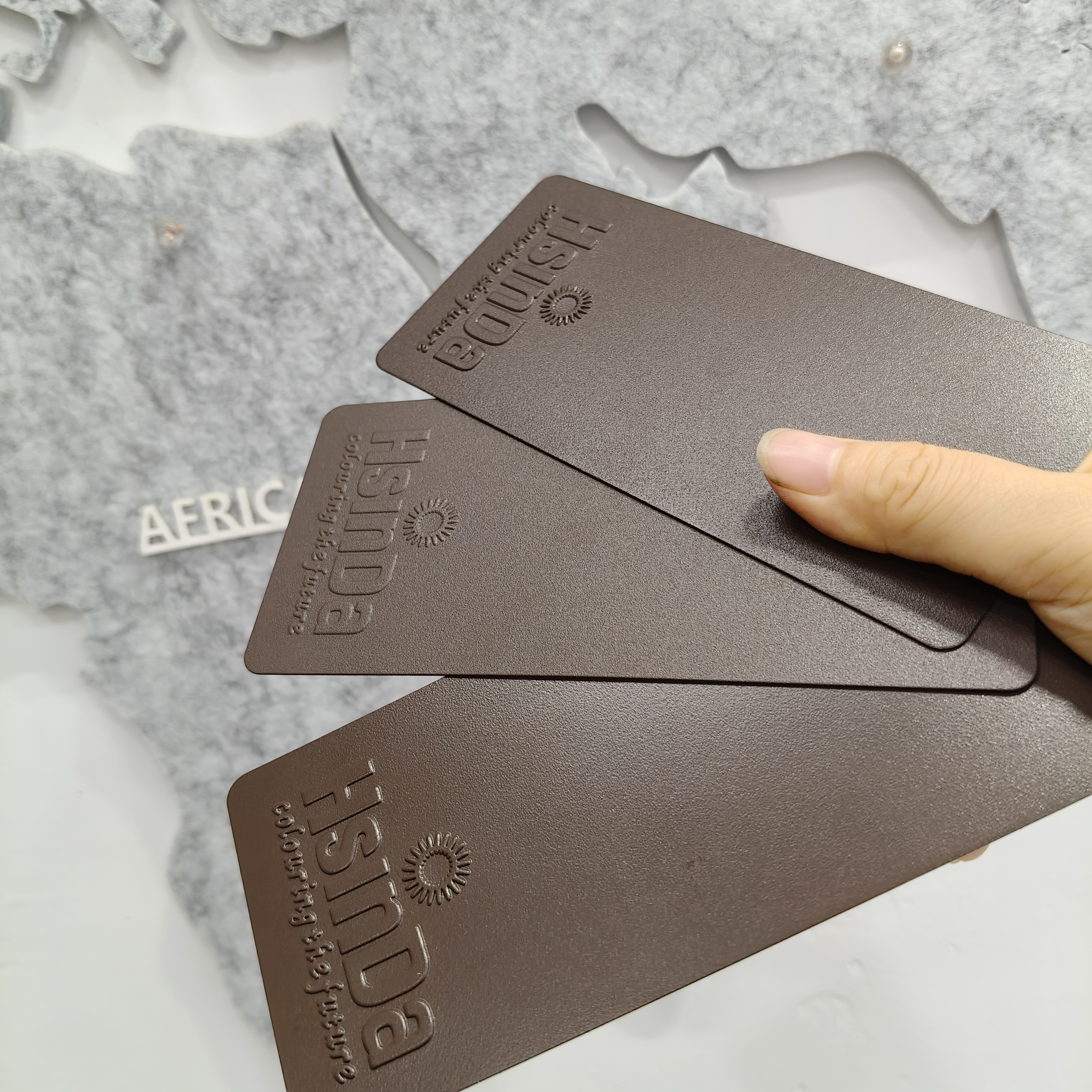

Additional Hsinda product lines (e.g., Anti-corrosion Powder Coating, Metallic Powder Coating, Sandy Powder Coating) serve automotive, furniture, electronics, and heavy-duty industrial sectors.

Comparison: Hsinda vs. General Architectural Powder Coatings

Data for Hsinda from company specifications and certifications. General coating data reflects common industry minimums.

Frequently Asked Questions

To request a quote or discuss your project requirements, contact Jenny Qin at innocoat.jenny@hsindapowdercoating.com or WhatsApp +86 18886412845. Download the company brochure here.

Conclusion

For architects, fabricators, and distributors seeking a powder coating that combines certified performance, broad customization, and environmental compliance, Hsinda’s Aluminum Powder Coating offers a verifiable solution. With ISO 9001, ISO 14001, FDA, RoHS, REACH, ISCC PLUS, and Carbon Footprint certifications, plus a 10,000 m² factory and 70% export share, Hsinda provides the documentation and consistency needed for demanding architectural projects. Request a sample or quote to begin your evaluation.
